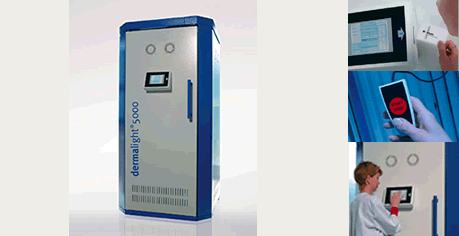

The new high-performance UV irradiation cabin

New UV lamp technology

Due to the use of electronically self-ballasted UV lamps the economic efficiency and the comfort of the dermalight® 5000 is increased considerably. The lamps are started by an internally generated ignition voltage, therefore no external starters are necessary any more. This means for the operator, that the service life time of the lamps can be increased by up to 30%, which also leads to lower follow-up costs for necessary lamp replacements.

UV lamp equipment

The dermalight® 5000 can be equipped with up to 48 UV lamps. Especially with an equipment of 32 UV-A lamps and 16 UV-B/311nm lamps the irradiation is homogeneous and the treatment times are short. The irradiation climate inside the cabin is very agreable thanks to the reflectors with integrated ventilators behind the lamps. A separate ventilation for patients rounds out the comfort. The plexiglass panes in front of the UV lamps protect the patients and are easy and quick to clean. Optical and acoustical signals indicate failures or interruptions.

48 x 100W-UV-A

48 x 100W-UV-B/311nm (TL/01)

24 x 100W-UV-B/311nm (TL/01)
